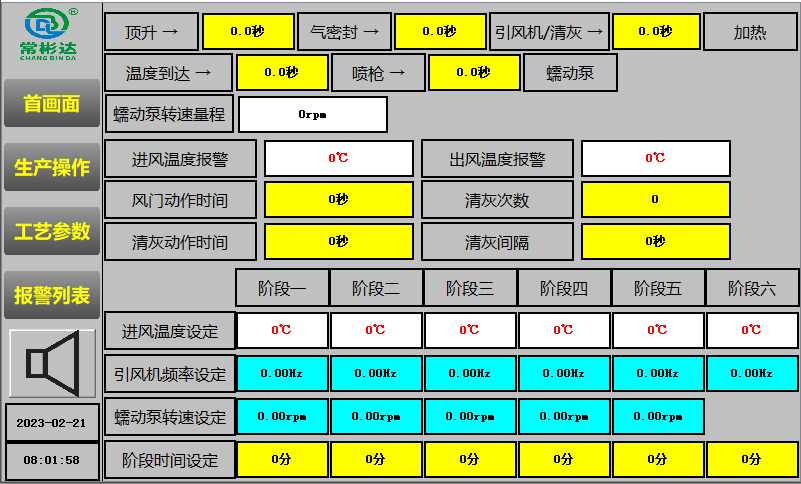

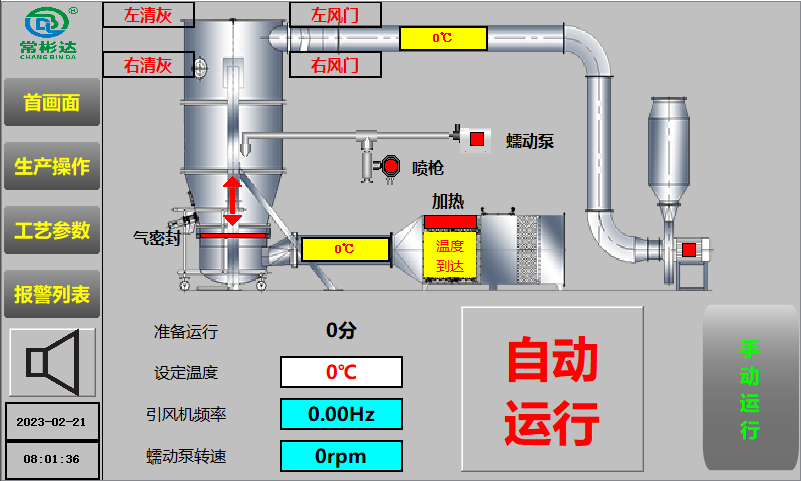

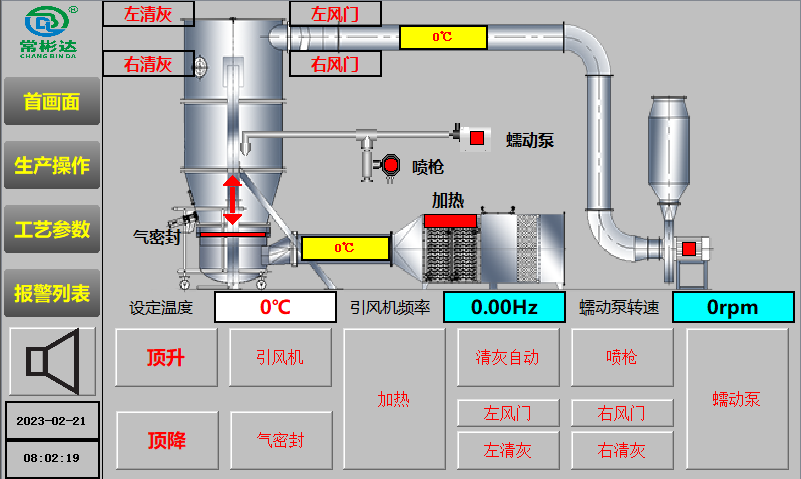

The boiling granulation dryer produced by Binda Drying is made of high-quality stainless steel, and the electrical control adopts PLC intelligent system. Customers only need to provide heat source and compressed air. After installation, it can be put into use. The product has stable performance and visible effects!
Boiling granulation dryer, also known as one-step granulator, utilizes the bonding effect of adhesive to bridge and aggregate solid powders, gradually forming particles.
Place the powdered material for granulation into a fluidized bed, and cool air enters through a filter, heated by a heater. After the cold air temperature rises to the process temperature, it enters the fluidized bed to circulate the powder in a fluidized state. At the same time, a mist like adhesive is sprayed to wet the powder in the container, causing the powder to aggregate into loose small particles. During granulation, the moisture continuously evaporates and is carried away by the hot air.
characteristic
1. There is a drainage device at the bottom of the host, which can quickly drain the accumulated water during machine cleaning
2. Completing mixing granulation drying in the same container reduces the process and complies with GMP standards;
3. Operate in a sealed container without dust flying, improving the operating environment;
4. The filter bag adopts anti-static filter material, ensuring safe operation of the equipment;
5. The adhesive atomizer adopts a multi fluid spray gun, with uniform atomization and high product qualification rate;
6. Using circular containers, the equipment has no dead corners, easy loading and unloading, and convenient flushing; The part in contact with the material is made of stainless steel;
7. Adopting a cylinder lift seal, the seal is reliable and the operation is simple;
8. The whole machine has good sealing performance and operates under negative pressure, which is more in line with GMP standards.
9. The entire equipment is easy to operate, disassemble, clean, and meets GMP requirements
More technical requirements for boiling granulation dryers can be discussed in detail with the drying technicians at Binda!
