Product Overview :
The hot air enters the bottom of the dryer through a tangent line and forms a strong rotating wind field driven by the agitator. The paste like material is fed into the dryer by a spiral feeder, and under the strong action of high-speed rotating stirring blades, the material is dispersed by impact, friction, and shear forces. The block like material is quickly crushed, fully contacted with hot air, heated, and dried.
Working principle

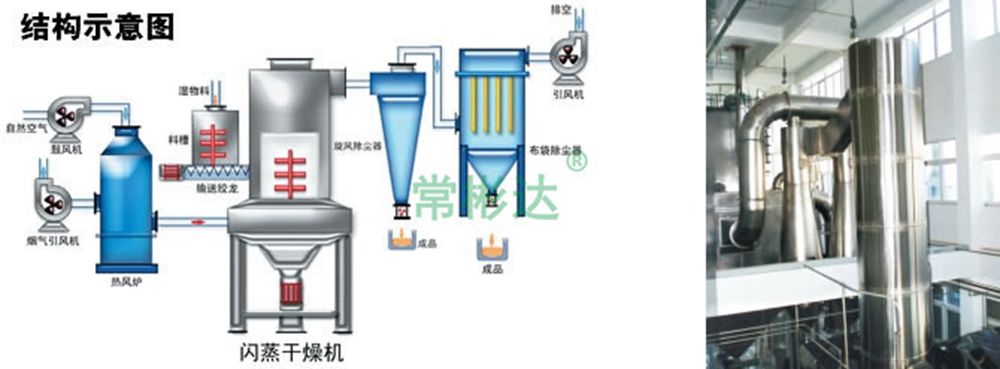

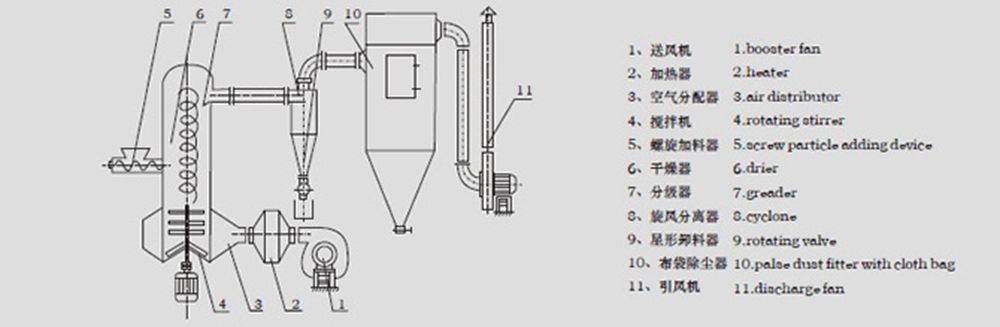

The hot air enters the bottom of the dryer through a tangent line and forms a strong rotating wind field driven by the agitator. The paste like material is fed into the dryer by a spiral feeder, and under the strong action of high-speed rotating stirring blades, the material is dispersed by impact, friction, and shear forces. The block like material is quickly crushed, fully contacted with hot air, heated, and dried. The dehydrated dry material rises with the hot air flow, and the classification ring intercepts large particles. Small particles are discharged from the center of the ring outside the dryer and are recovered by the cyclone separator and dust collector. Undried or large materials are thrown towards the wall by centrifugal force and fall back to the bottom for crushing and drying.
Performance characteristics
The organic combination of swirl, fluidization, jetting, and crushing classification technologies.
Compact equipment, small size, high production efficiency, continuous production, achieving "small equipment, large production".
High drying intensity, low energy consumption, and high thermal efficiency.
The material has a short residence time, good product quality, and can be used for drying heat sensitive materials.
◎ Negative pressure or micro negative pressure operation, good sealing, high efficiency, and elimination of environmental pollution.
◎ Can be designed with PLC automation to form a production line.
Binda drying is customized according to customer process requirements.
Adapt to materials
Organic compounds: atrazine (pesticide insecticide), lauric acid, benzoic acid, benzoic acid, fungicide, sodium oxalate, cellulose acetate, organic pigments, etc.
Dyes: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.
Inorganic substances: borax, calcium carbonate, hydroxides, copper sulfate, iron oxide, barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts, synthetic cryolite, silicon dioxide, etc.
Food: soy protein, gelatinous starch, wine trough, wheat sugar, wheat starch, soybean residue, etc.
